Trends

The Trends page shows graphical information about your email data. View Trends by selecting Insights > Trends.

  • Use the calendar control to show data for a specific Day, Week, or Month.

  • Click data of interest in the graphs to be taken to the data details on the Messages page.

  • Click legend items to be taken to the relevant data on the Messages page. For example, click Incoming to see all Incoming messages that are currently showing on the chart.

  • Download your trend data by clicking the download button. The results are exported as a CSV file that includes:

    • an hourly roll-up of the past 90 days of data if you are viewing the last 24 hours or a specific day

    • 24-hour roll-ups of the past 90 days of data if you are viewing the last 30 days

  • Print your Trends charts or save as PDF by clicking the print button.

About Timezones

Each bar on a Day chart shows the data for one hour. These charts are based in your browser's local timezone.

Each bar on a Week or Month chart shows the data for one 24-hour day. The day is based on UTC 00:00 through 11:59 p.m. and then converted to your browser’s local time.

For example, if you are in Pacific Daylight Time (PDT) UTC−07:00, a bar on a Month chart would show from July 20 5:00 p.m. through July 21 4:59 p.m. Pacific.

Messages by Direction

The Messages by Direction graph shows your total email traffic. Mail is divided into the following categories:

  • Outgoing: mail sent to recipients outside of your O365 tenant

  • Internal: mail sent within your O365 tenant

  • Incoming: mail received from outside your O365 tenant

The legend shows the number of messages in each category.

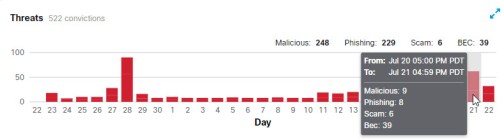

Threats

The Threats graph shows a snapshots of messages that were determined to be threats. This includes BEC, Scam, Phishing, and Malicious. The legend shows the number of messages in each category. Click the data to be taken to the Messages page.

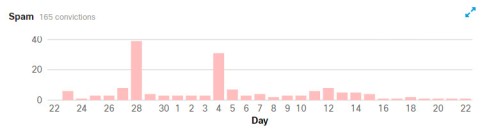

Spam

The Spam graph shows a snapshot of messages that were determined to be Spam. The legend shows the total number of messages determined to be Spam.

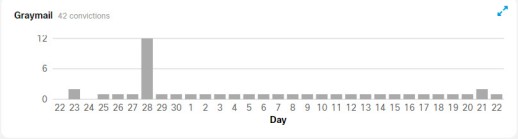

Graymail

The Graymail graph shows a snapshot of messages that were determined to be Graymail. The legend shows the total number of messages determined to be Graymail.
